Community and Aquatic Center

Sammamish, WA

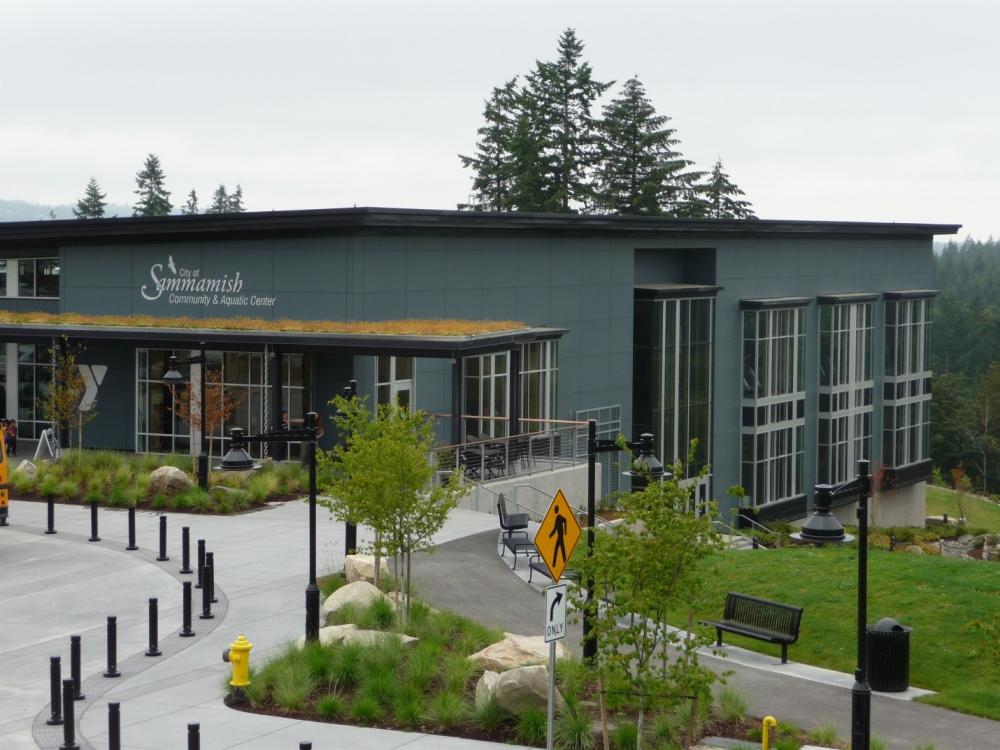

The 69,000 square foot, two-story building will provide the local community many health-oriented resources, such as multiple gyms, jogging track, several multi-purpose rooms and two pools. The center has created a beautiful public space and a city hub adjacent to the City Hall, Library and commons park. Efficient climate conditioning, water use and a green roof make it an environmentally friendly solution. The City has teamed up with the YMCA to operate and maintain the facility.

Products

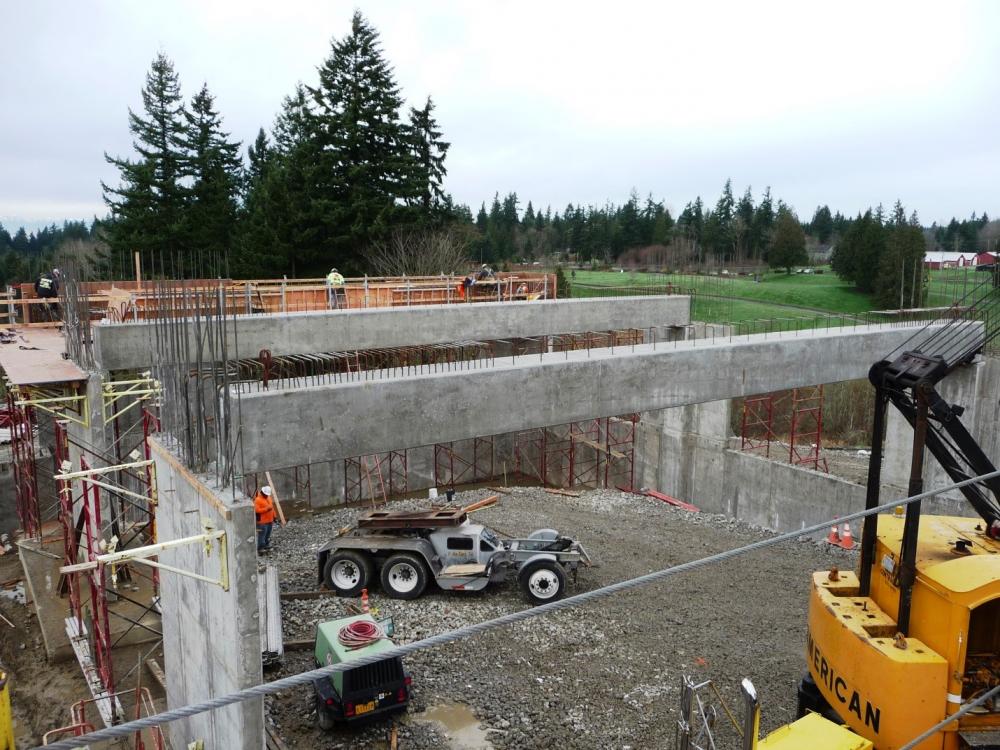

Rectangle Beams – 2 pcs. – 33”x37.25” Prestressed Rectangular Beams

Hollow Core – 45 pcs. – 12” Hollow Core Planks

Features

Span Length - Rectangle beams are 56’-7” long and the Hollow Core reached over 31’ in length.

Bidder-design - The precast products were designed to span across the lap pool while supporting the fitness center above. Exercise equipment, active users, and potential non-uniform loading were taken into account to provide the necessary shear, flexure and torsional demands on the products.

Building Considerations - The inherent nature of these precast/prestressed products enables them to function very well in close proximity to the chlorinated pool as well as provide adequate fire rating, exceeding code requirements.

Contact

Matt Crowell
Sales Engineer
(253) 383-3545
Contact »

Credits

Owner
City of Sammamish Parks and Recreation
Architect
Barker Rinker Seacat Architecture
Structural Designer
KPFF Consulting Engineers / Concrete Technology Corporation
General Contractor
Porter Brothers Construction, Edgewood Washington
